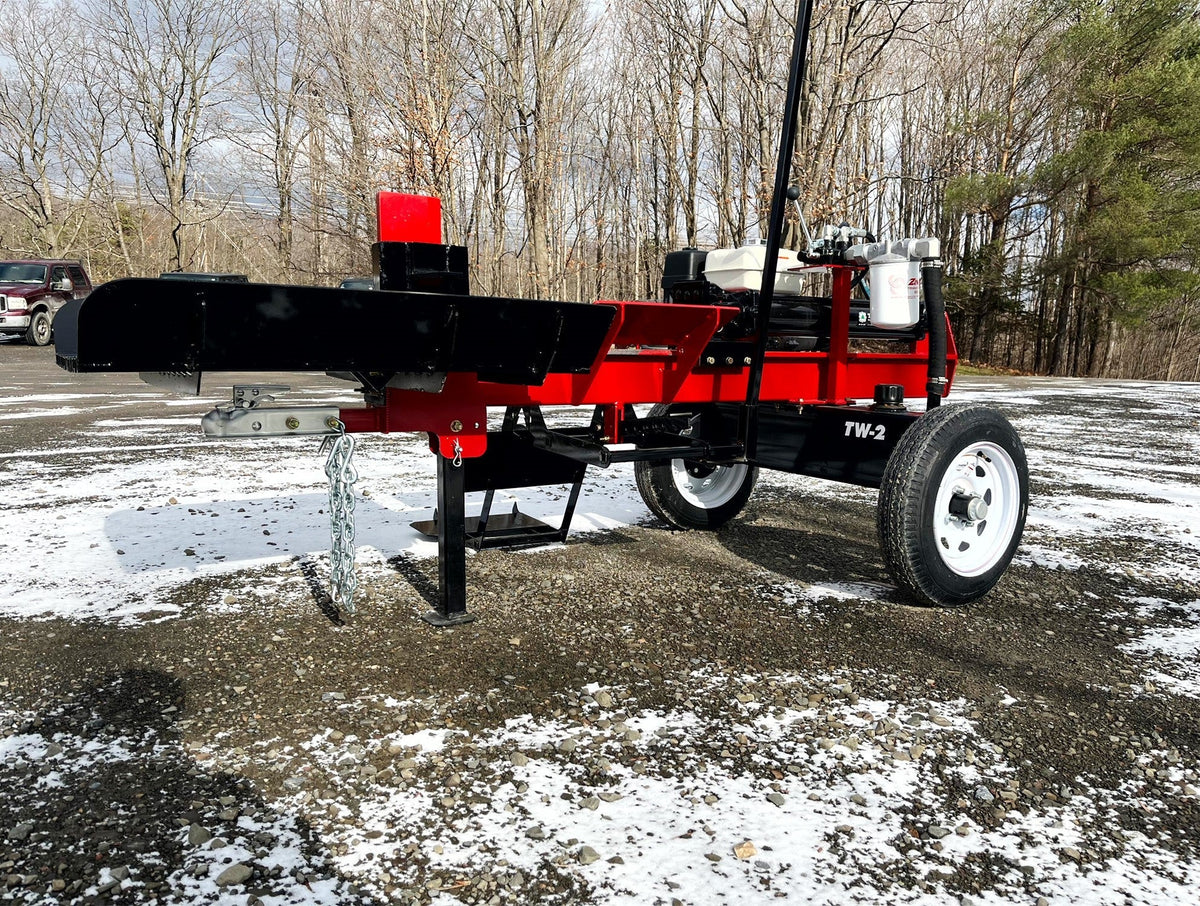

A detent valve is one of the features that makes a hydraulic log splitter easier to operate. On many machines, the control lever can be moved into the retract position and held there by an internal detent. The cylinder returns automatically, then the valve releases back to neutral at the end of the stroke. That frees the operator to grab or stage the next piece of wood instead of holding the lever for the entire return.
How the detent function works
The splitter control valve directs pressurized oil to either side of the hydraulic cylinder. In the extend position, the wedge or push plate moves toward the log. In neutral, flow returns without moving the cylinder. In retract, oil is routed so the cylinder returns.
A detent mechanism temporarily holds the spool in the retract position. When system pressure rises at the end of the return stroke, the detent releases and the spool returns to neutral. The exact design and release pressure depend on the valve. Not every splitter uses the same configuration, and some commercial systems add other automation features.
Why auto-return improves productivity
Splitting involves many short cycles. If the operator has to hold the lever during every retract, one hand is occupied while the wedge travels back. Auto-return lets the operator use that time to clear finished splits, position the next round, or organize the work area.
The time saved on one cycle is small, but repeated hundreds of times it becomes meaningful. This is especially important on commercial splitters where cycle time, log handling, and operator movement all determine cords per hour. A fast hydraulic system provides little benefit if the workflow around the machine is inefficient.
Common detent valve problems
If the lever will not stay in retract, the detent may be worn, contaminated, incorrectly adjusted, or operating with insufficient pressure. If it stays locked and does not release, the adjustment may be incorrect or the valve may have an internal problem. Hydraulic contamination can also affect spool movement.
Before adjusting a detent, consult the machine or valve manufacturer's procedure. Detent release settings interact with system pressure and should not be changed casually. A valve that behaves differently than normal deserves inspection before continued use.
Other hydraulic symptoms can look like a detent issue. A slow return may come from low flow, filter restriction, aerated oil, low engine speed, or cylinder leakage. A wedge that will not retract can involve valve, cylinder, hose, or pump problems. See our log splitter wedge won't retract troubleshooting guide for a broader checklist.
Safety matters more than convenience
Auto-return does not make the machine hands-free. The operator must still stay clear of pinch points, the wedge path, log lift, and moving components. Do not reach into the splitting zone because the cylinder appears to be returning. Wood can shift, roll, or release stored energy unexpectedly.
Never defeat guards, modify control logic, or alter the valve so the machine automatically extends without the safety functions intended by the manufacturer. Many splitters are designed so powered extension requires deliberate operator control. Follow the manual for the specific machine.
What to compare when buying a splitter
Look at control layout, return behavior, cycle time, wedge position, log lift, table height, and how comfortably the operator can stage the next round. A well-designed valve and ergonomic work area can improve production as much as a small increase in tonnage.
Commercial buyers should also consider valve availability and serviceability. Hydraulic valves are wear components in high-hour equipment. Standard, accessible components can reduce downtime when service is eventually required. Compare different configurations in our log splitter collection.
Detent versus full auto-cycle
Auto-return is not the same as a full auto-cycle system. An auto-return detent only holds the retract stroke and releases at the end. Some commercial machines use more advanced controls to coordinate multiple movements. Buyers should verify exactly what a manufacturer's cycle description means rather than assuming all automation features work the same way.
Frequently Asked Questions
What is a log splitter detent valve?
It is a hydraulic control valve with a mechanism that can hold the spool in a selected position, commonly retract, until a release condition returns it to neutral.
Why does my log splitter lever kick back to neutral?
That is normal at the end of an auto-return stroke. If it releases immediately or unpredictably, the detent may need inspection or adjustment according to the manufacturer's procedure.
Can I adjust the detent pressure myself?
Only if the manufacturer provides a specific procedure and you understand the hydraulic system. Incorrect adjustment can create unsafe behavior or component damage.
Is auto-return worth having?
For frequent splitting, yes. It reduces lever-holding time and lets the operator prepare the next piece while the cylinder retracts.
