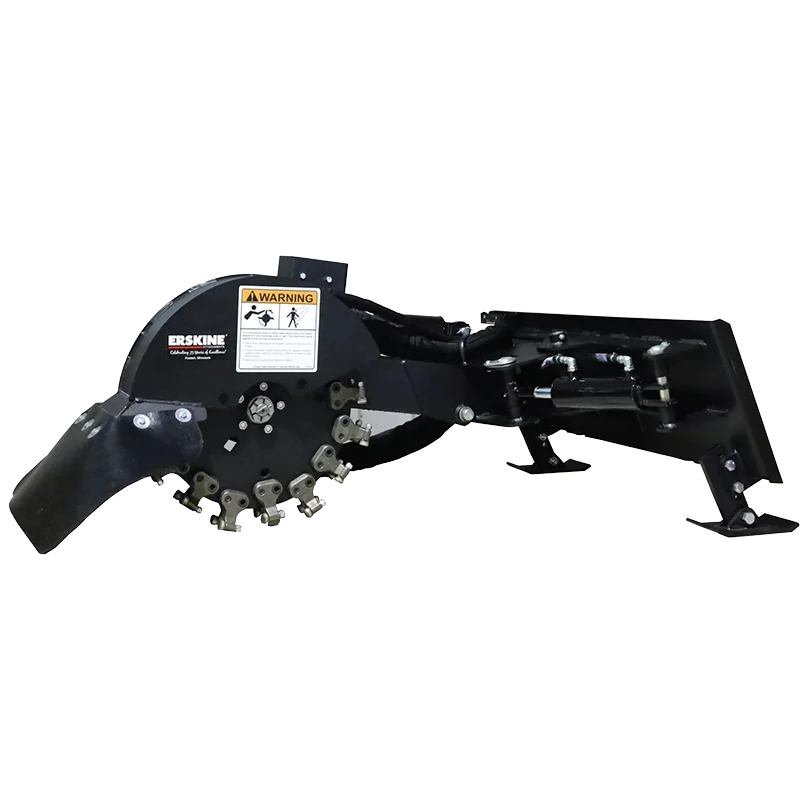

The Erskine 901777 is the standard-flow version of Erskine’s full-size skid steer stump grinder. It is built for carriers in the 15–30 GPM range and uses a direct-drive 24-inch cutting wheel with 32 replaceable carbide teeth. For tree-service and land-maintenance crews that already own a standard-flow skid steer or compact track loader, it offers a way to add stump removal without buying a separate self-propelled machine.
Key Specifications
| Hydraulic flow | 15–30 GPM |
|---|---|
| Operating weight | 540 lb |
| Cutting wheel | 24 in. |
| Wheel speed | 590–1,100 RPM |
| Teeth | 32 carbide teeth |
| Max cutting diameter | 32 in. |
| Cutting depth | 8 in. below grade |
| Cutting arc | 55° |
| Case drain | Required |
1. Standard-flow positioning
The 901777 is aimed at a very common class of skid steers and compact track loaders. A 15–30 GPM auxiliary-flow range means many contractors can use a carrier already present on the jobsite instead of purchasing a dedicated stump grinder.
That equipment-sharing model can improve utilization. The same carrier that handles brush, logs, buckets or forks can switch to stump grinding when needed. The key is verifying the exact hydraulic output rather than assuming every standard-flow machine falls inside the attachment’s range.
2. Why the 24-inch wheel matters
A 24-inch cutting wheel gives the 901777 more working mass and tooth coverage than compact mini-skid grinders. That can reduce the number of passes required on medium and larger stumps and improve production when the site has enough room for a skid steer.
Wheel diameter is only part of performance. Hydraulic power, tooth condition, operator sweep speed and stump species all affect grinding rate. The most productive setup keeps the wheel cutting steadily without forcing it deeply enough to stall or pull excessive hydraulic load.
3. 32 replaceable carbide teeth
The cutting system uses 32 carbide teeth that can be replaced as they wear. A complete, sharp tooth pattern helps distribute cutting load around the wheel and reduces vibration compared with operating on chipped or missing teeth.
Commercial operators should inspect teeth before every job, especially after working around rocky soil. Carrying spare teeth and hardware prevents a damaged cutter from ending a billable day early.
4. Direct drive without a gearbox
The attachment is designed without a gearbox between the hydraulic motor and cutting wheel. Fewer drivetrain components can simplify the power path and reduce one potential maintenance system.
Direct drive does not eliminate maintenance. Hydraulic motor condition, wheel bearings, hoses, fittings and the cutting assembly still need inspection. The value is a mechanically straightforward layout focused on transferring hydraulic power to the wheel.
5. Bidirectional cutting
The wheel can cut in both directions across its sweep. That reduces dead movement and can help the operator work methodically across the stump surface rather than returning empty after every pass.
The best technique is controlled, progressive removal. Taking overly deep bites can slow the wheel and increase heat. A consistent sweep that keeps wheel speed up generally produces better average output.
6. Eight inches below grade
The 901777 can grind to approximately 8 inches below grade. That provides more depth than the compact 901776 and is useful for lawn restoration, landscape changes and many construction-preparation jobs.
Operators should determine the required finish depth before starting. Grinding substantially deeper than the project needs adds machine time, tooth wear and debris without necessarily improving the finished result.
7. Carrier compatibility and case drain
A case drain is required, so the carrier needs the appropriate low-pressure return connection in addition to compatible auxiliary hydraulics. This is an important pre-purchase check because not every machine is configured identically.
Coupler size, return routing and pressure limits should be confirmed from the carrier and attachment documentation. Correct hydraulic setup protects the motor and helps the wheel reach its intended operating range.
8. Best buyers for the 901777
The strongest buyer is a tree-service company, landscape contractor, municipal crew or land-management operator that already owns a compatible standard-flow skid steer. The attachment turns existing equipment into a stump-removal platform while preserving the carrier for other tasks.
If the carrier consistently produces 31–42 GPM high flow, compare the 901778 instead. The high-flow motor configuration is designed around that hydraulic class and can make better use of the available system.
Buying Decision: Match the Grinder to the Carrier and Work
Stump grinder specifications only become useful when they are matched to the actual jobs and carrier. Record the stump diameters you encounter most often, typical wood species, site access, desired below-grade depth and how many stumps are completed in a normal day. Then compare those needs with hydraulic or PTO compatibility, cutting-wheel size and the amount of repositioning each attachment requires.
For commercial operators, include carrier utilization in the decision. An attachment can create strong ROI when it turns an existing skid steer or tractor into a revenue-producing grinder without adding another engine and trailer to the fleet. The tradeoff is that the carrier is committed while grinding. Parts support, tooth availability and service access should also be considered because downtime during tree-service season can cost more than a small difference in purchase price.
Ownership and First-Use Checklist
Before first use, verify every hydraulic, PTO, hitch and coupler requirement in the current manufacturer documentation. Inspect cutting teeth, fasteners, wheel condition, guards and mounting points. Establish a normal baseline for sound, vibration, wheel speed and hydraulic temperature before moving into heavy production.
After the first few jobs, inspect tooth wear and fastener torque again. Stump grinding works close to soil and hidden debris, so early inspection helps identify site-specific wear patterns. Keep a service log and replacement teeth available if the grinder will be used commercially.
Frequently Asked Questions
What flow range does the 901777 need?
15–30 GPM.
Does it require a case drain?
Yes. Erskine specifies a case drain for the attachment.
How large is the cutting wheel?
24 inches with 32 carbide teeth.
How deep can it grind?
Up to about 8 inches below grade.
What is the main difference from the 901778?
The 901777 is configured for standard-flow hydraulics, while the 901778 is designed for 31–42 GPM high flow.
