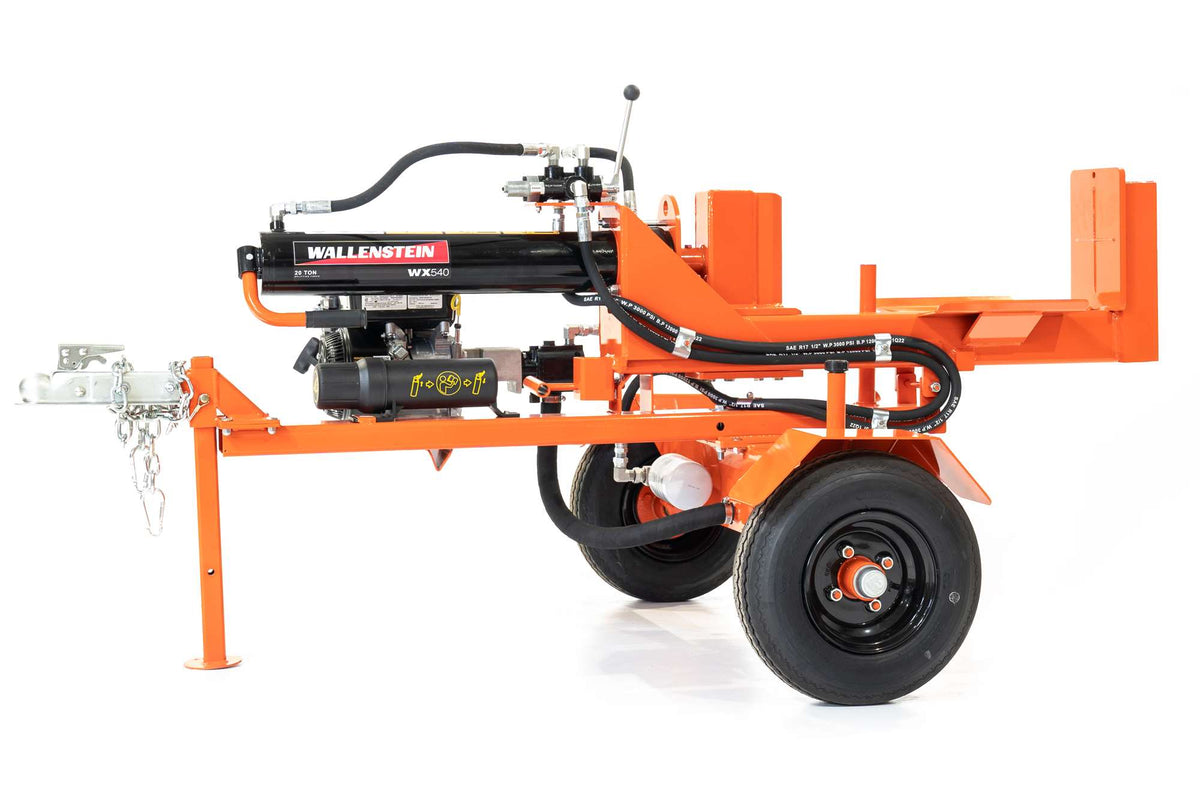

The WX540 is a straightforward 20-ton horizontal/vertical splitter for property owners, rental use and moderate firewood production. A 24-inch opening, Vanguard engine and vertical mode make it especially useful when large rounds are too awkward to lift onto the beam.
Key Specifications
| Splitting force | 20 ton |
|---|---|
| Max split opening | 24 in. |
| Orientation | Horizontal / vertical |
| Engine | Vanguard 6.5 HP / 203 cc |
| Average split time | 6.62 sec. |
| Full cycle | 13.24 sec. |
| Hitch | 2-in. ball |
| Weight | 470 lb |
| Return | Hands-free return |
1. 20 tons is about material fit, not bragging rights
Tonnage is useful only when matched to the wood being processed. Twenty tons is enough for a wide range of normal firewood, but knots, crotches, dense hardwood and oversized rounds can require more force than straight-grained material of the same diameter.
Buyers should consider their hardest regular material rather than the easiest stack. If large oak crotches or heavily twisted hardwood dominate the workload, moving to a higher-force commercial machine may reduce repeated attempts and operator time.
2. Why horizontal/vertical operation matters
Horizontal mode keeps normal rounds at a comfortable working height and works well with a table or organized staging area. Vertical mode lets the operator roll or tip a heavy round into place instead of lifting it onto the beam.
That flexibility matters more as round diameter increases. For occasional large pieces, vertical capability can avoid the cost and complexity of a hydraulic log lift while still reducing manual lifting.
3. Understanding the 13.24-second full cycle
The published full cycle gives a useful benchmark, but real production is shaped by more than cylinder travel. Operators rarely need full stroke on every log, and time spent lifting, positioning, clearing splits and staging the next round can exceed hydraulic travel time.
For production planning, measure cords or rounds per hour with your actual workflow. A faster theoretical cycle does not guarantee higher output if finished wood piles up around the operator.
4. Towability and jobsite movement
The WX540 uses a 2-inch ball hitch and weighs about 470 lb, making it mobile around properties and suitable for moving between work areas. Road use should always follow the machine’s towing limits and local legal requirements.
Small towable equipment can be easy to underestimate. Tire condition, coupler engagement, safety chains and any required lighting should be checked before travel, and the splitter should be placed in the manufacturer’s transport configuration.
5. Best-fit users
This model makes sense for homeowners with substantial annual firewood needs, farms, acreage owners, rental operations and small firewood businesses that want a familiar self-contained gas splitter.
It is less specialized than high-production bi-directional commercial machines. Businesses targeting several cords per day should compare not only tonnage but also log lifts, multi-way wedges, cycle behavior and material-handling options.
6. Engine and hydraulic maintenance
A self-contained splitter adds engine, pump, reservoir, hoses, valve and cylinder maintenance. That is the tradeoff for independence from a tractor or skid steer. Oil, filters, hydraulic fluid and lubrication should follow the manufacturer’s intervals.
The system should be watched for leaks, aeration, unusual heat and changes in cycle speed. A maintenance log is especially useful because gradual performance loss is easier to spot when cycle time and service dates are recorded.
7. When a 20-ton splitter is the right economic choice
Buying more tonnage than the wood requires raises acquisition cost without automatically producing more firewood. The WX540 can be a sensible middle ground when the goal is reliable property-scale production with occasional heavy rounds.
If most logs are moderate in diameter and straight-grained, workflow improvements—staging, a table, better finished-wood handling—may create more benefit than moving to a dramatically larger machine.
Pre-Purchase and First-Use Checks
Before ordering a splitter, measure typical round length and diameter, identify the hardest species you process and map how logs will reach the beam. Confirm towing or carrier requirements, hydraulic compatibility where applicable, storage space and whether optional tables, log lifts or wedge configurations would remove a real handling bottleneck. The best configuration is the one that reduces touches around the machine, not the one with the longest option list.
At first use, inspect hydraulic connections, fluid level, guards, control movement, wedge condition, tires or attachment points and all transport locks according to the manufacturer manual. Cycle the machine without a log and establish a baseline for speed, sound and temperature before full production. Record service dates and any option settings. If performance changes later, a baseline helps distinguish normal material variation from a hydraulic or mechanical problem.
Buying Decision: Look Beyond the Headline Specification
A high-capacity number or fast cycle is useful only when it removes a real bottleneck. Before buying, measure the material you process most often, the power source you already own, the distance material travels through the work area and how much operator time is spent preparing or repositioning it. That creates a practical baseline for comparing this machine with alternatives.
Also include ownership factors such as maintenance access, wear parts, documentation, towing or tractor requirements, storage and downtime. For commercial operators, labor saved over hundreds of operating hours can matter more than a modest difference in purchase price. For property owners, buying a machine that is easy to use and correctly sized can be more valuable than maximizing capacity that rarely gets used.
Frequently Asked Questions
Can the WX540 split vertically?
Yes. It converts between horizontal and vertical operation.
What log length can it handle?
The published split opening is 24 inches.
What is the full cycle time?
Wallenstein lists 13.24 seconds.
Is it road towable?
It has a 2-inch ball hitch, but legal road use depends on manufacturer limits and local requirements.
Who is the WX540 best for?
Property owners, farms, rentals and moderate firewood production where 20 tons and vertical capability match the wood supply.
