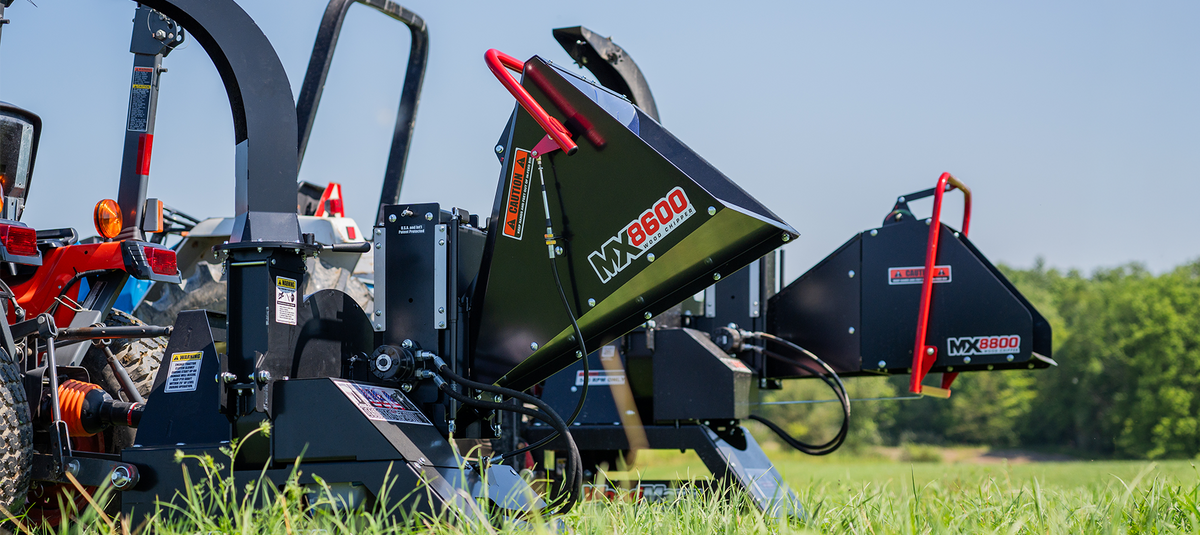

A PTO wood chipper can be a very efficient way to turn tractor power into brush-processing capacity, but compatibility is more detailed than matching a horsepower number. PTO speed, shaft length, driveline overlap, hitch geometry, lift height, guarding, and operating angles all need to work together.
This guide is not a substitute for the tractor or chipper manual. PTO drivelines can be dangerous when they are incorrectly sized, unguarded, damaged, or operated at improper angles. Use the steps below as a buying and setup checklist, then follow the exact manufacturer procedure for your tractor and chipper.
1. Start with PTO horsepower, not engine horsepower
Tractor engine horsepower and PTO horsepower are not the same number. The chipper manufacturer generally specifies a PTO horsepower range because that is the power actually available at the driveline. A tractor can have an impressive engine rating and still fall outside the attachment's recommended PTO range.
Too little usable power can reduce performance under load. Excess power does not give permission to exceed the chipper's rated capacity or speed.
2. Confirm PTO speed and shaft type
Many tractor implements use a standard PTO speed, but you should never assume the required speed. Verify the chipper's rated input speed and the tractor setting that provides it. Running at an incorrect speed can affect performance and may damage the driveline or cutting system.
Also confirm spline configuration and any clutch, shear-bolt, overrunning, or protection device specified for the attachment.
3. Shaft length is a setup measurement
A PTO shaft needs adequate engagement while still having enough room to shorten as the hitch moves. A shaft that is too long can bottom out and push damaging loads into the tractor or implement. A shaft that is too short can separate or operate with insufficient overlap.
Measure and size the shaft using the chipper manufacturer's procedure with the actual tractor and hitch geometry.
4. Check driveline angles through hitch movement
The relationship between tractor PTO, shaft, and chipper gearbox changes as the three-point hitch moves. Excessive operating angles can create vibration, heat, accelerated universal-joint wear, or unsafe driveline behavior.
Raise and lower the attachment only within the range allowed by the manufacturer. Verify clearances before engaging the PTO.
5. Keep all PTO guarding intact
The tractor PTO shield, shaft guard, safety chains, and implement-side guarding exist to reduce entanglement risk. A rotating unguarded shaft can cause catastrophic injury in seconds. Never operate with damaged or missing guards.
Keep clothing, hands, feet, tools, hoses, ropes, and bystanders away from the driveline. Stop the tractor and isolate power before inspection or service.
6. Hitch and lift capacity matter too
Three-point category, quick-hitch geometry, top-link position, implement weight, and tractor lift capacity all affect fit. A chipper that the PTO can technically power may still be a poor match if the hitch cannot safely carry or position it.
Consider front ballast and tractor stability where required by the tractor manufacturer. Transporting a heavy rear attachment changes steering, braking, and weight distribution.
7. Do a controlled setup inspection before production
Before the first real brush pile, inspect mounting pins, PTO locking mechanisms, guards, hydraulic connections if equipped, discharge direction, and all clearances. Rotate or test components only using the manufacturer-approved method.
Start with controlled material and listen for abnormal vibration or driveline noise. Stop immediately if the shaft, hitch, or machine behaves unexpectedly.
Practical Checklist
- Verify tractor PTO horsepower
- Confirm required PTO speed
- Match spline and shaft components
- Measure shaft length on the actual tractor
- Check overlap and compression through hitch travel
- Inspect PTO shields and shaft guard
- Confirm hitch category and lift capacity
- Check driveline angles and clearances
- Follow the manufacturer setup procedure
Use the Machine, Manual and Workload Together
Equipment decisions are strongest when three things agree: the manufacturer's specifications, the condition and configuration of the actual machine, and the work you expect it to do most often. Specifications define the operating envelope; inspection tells you whether the machine is ready to work; and your workload determines whether the setup is productive enough to justify the cost. Avoid making a buying or maintenance decision from a single number such as horsepower, tonnage, branch diameter, cycle time, or purchase price.
Keep simple records as you operate. Note hours, material type, fuel or tractor use, maintenance intervals, delays, unusual heat or vibration, knife or wedge condition, and the amount of labor needed around the machine. Those observations create a useful baseline. When performance changes, you can compare against normal rather than guessing. For commercial operations, the same records help reveal where a larger machine, different attachment, better staging, or preventive maintenance could save enough labor to pay for itself.
Frequently Asked Questions
Can I use engine horsepower to size a PTO chipper?
Use the PTO horsepower requirement published by the chipper manufacturer.
Can I cut a PTO shaft myself?
Some shafts are designed to be shortened during installation, but sizing must follow the manufacturer's procedure.
Why does my PTO shaft vibrate?
Possible causes include excessive angles, worn joints, improper shaft length, imbalance, incorrect phasing, or damaged components.
Can I operate with the hitch fully raised?
Only if the manufacturer explicitly permits that position.
Does a quick hitch change PTO shaft length?
It can change the distance between tractor and implement, so re-check shaft length and geometry.
