A hydraulic log lift and vertical splitting solve the same basic problem in different ways: how to process heavy rounds without dead-lifting them onto a horizontal beam. Vertical splitters bring the wedge closer to ground level. Log lifts bring the round up to a horizontal production deck.
For occasional oversized logs, vertical capability can be simple and effective. For repeated high-volume work, a hydraulic log lift usually integrates better into a production workflow.
In This Guide
Hydraulic Log Lift vs Vertical Splitting
| Factor | Hydraulic Log Lift | Vertical Mode |
|---|---|---|
| Heavy log handling | Raises log to work height | Keeps log near ground |
| Production flow | Better for repeated volume | Better for occasional heavy rounds |
| Operator position | Mostly standing | More bending / ground-level work |
| Machine complexity | More hydraulics | Simpler mechanism |
How Vertical Splitting Works
A vertical/horizontal splitter pivots the beam so the wedge can work near the ground. The operator rolls or tips a heavy round into position rather than lifting it to waist height.
The Iron & Oak BHVH3018GXT is designed for both positions. That flexibility is valuable when most wood is manageable but a few oversized rounds appear in every load.
Advantages of Vertical Mode
- No separate hydraulic lift mechanism.
- Heavy rounds stay close to the ground.
- Machine can still return to horizontal mode.
- Useful for occasional large-diameter logs.
- Lower complexity than a commercial production table.
Limitations of Vertical Mode
The operator works lower to the ground and often must reposition pieces manually. For a few heavy rounds that is acceptable. Across hundreds of rounds per day, the bending and handling can become the bottleneck.
Vertical mode also does not automatically help move finished splits away from the machine.
How a Hydraulic Log Lift Changes the Workflow

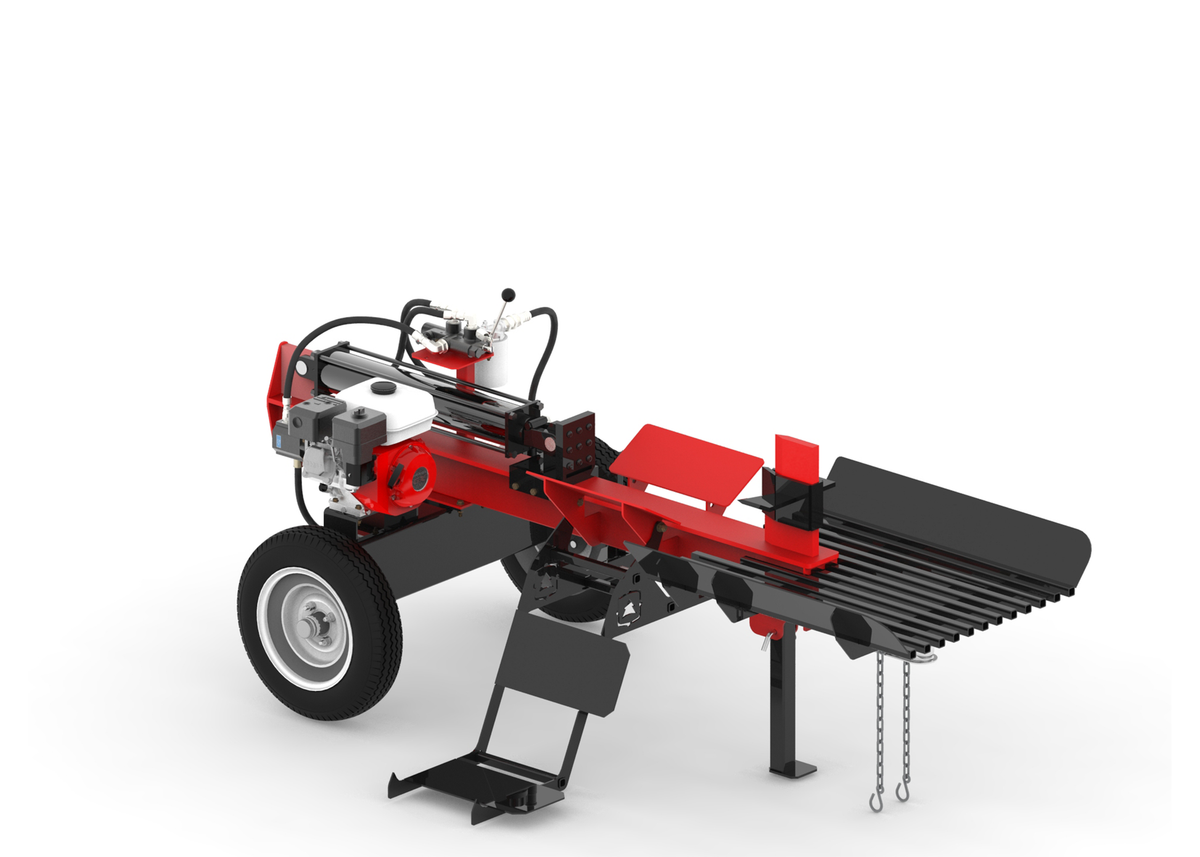

A log lift is a powered platform or arm that lowers to the ground, receives the round and raises it to the splitter deck. The operator can then roll the log into the wedge path while staying at a more consistent working height.
The Timberwolf TW-2 includes a hydraulic log lift, and the Wolfe Ridge 28 Pro-X uses a reversible hydraulic lift.
Why Commercial Producers Prefer Lifts
Production equipment is designed around material flow. A log lift becomes part of a sequence: round arrives, lift raises it, wedge splits it, table supports pieces and a conveyor or pile receives the finished wood.
The lift reduces manual vertical movement and keeps the operator closer to one working position. That can matter more than a small difference in cycle time.
Hydraulic Complexity and Maintenance
The tradeoff is additional hoses, pivots, valves and cylinders. A lift requires inspection and adds hydraulic load. Commercial users accept that complexity because the productivity benefit can outweigh maintenance cost.
For someone splitting only a few cords each year, a vertical/horizontal machine may deliver most of the handling benefit with less equipment.
Round Size and Weight
Diameter alone does not tell you how difficult a round is to move. Species, length and moisture affect weight. Large green hardwood can be extremely heavy even when the splitter has plenty of force to break it.
That is why “can it split the log?” and “can one person load the log?” should be treated as separate buying questions.
Handling Cost Over a Full Day
One heavy round is not the real test. The business case changes when an operator handles dozens or hundreds of rounds in a shift. Repeated lifting slows the pace as fatigue builds, while a powered lift can keep the loading motion more consistent.
For commercial buyers, estimate how many heavy rounds are processed per day and how many minutes are currently spent rolling, lifting and repositioning them. That labor calculation can justify a lift even when the splitter itself has identical tonnage.
Which Setup Is Better for One Operator?
If one person works alone and regularly handles large rounds, a hydraulic log lift can reduce repeated heavy lifting. If oversized logs are occasional, vertical mode may be enough.
Think about the entire day, not one impressive round. Ergonomics affect productivity after several hours.
Which Setup Is Better for a Firewood Business?
For commercial volume, the log lift usually wins because it fits horizontal production with multi-way wedges, tables and conveyors. Vertical mode is harder to integrate into a continuous material flow.
Decision Framework
Choose vertical/horizontal if: budget matters, heavy rounds are occasional, you want mechanical simplicity and production volume is moderate.
Choose a hydraulic log lift if: large rounds are routine, one operator handles the machine, commercial output matters or you plan to integrate other material-handling equipment.
Frequently Asked Questions
Does a log lift increase splitting force?
No. It improves material handling. Splitting force comes from the hydraulic cylinder and system design.
Can a vertical splitter be used horizontally?
Only if the model is specifically designed for both positions.
Is a hydraulic lift worth it for personal firewood?
It can be if rounds are consistently large or the operator wants to minimize lifting, but it is more commonly justified by higher-volume use.
