BHVH2418GX 24-Ton Vertical / Horizontal Log Splitter
BHVH2418GX 24-Ton Vertical / Horizontal Log Splitter
Manufacturer: Iron & Oak
Free Shipping to Your Home
Ships in 1 to 3 Business days
Commercial-Grade 24-Ton Splitting Power

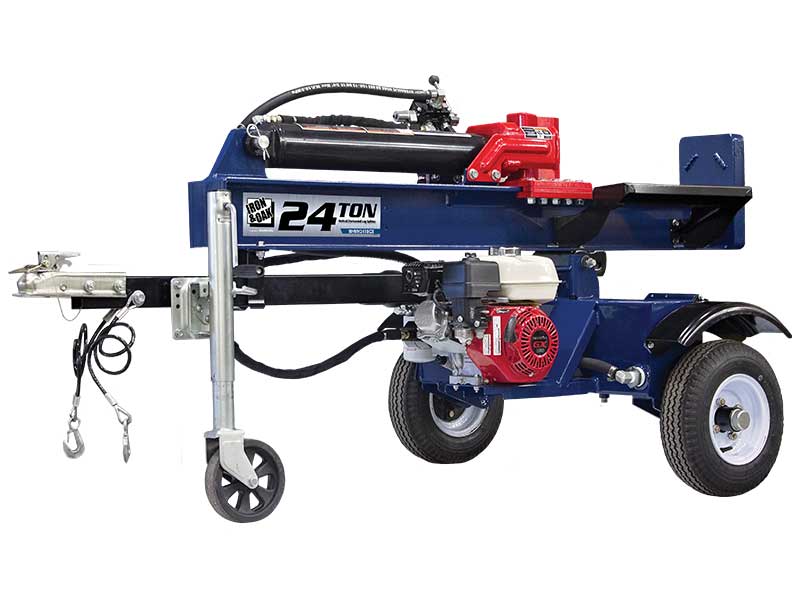

The Iron & Oak BHVH2418GX is a tow-behind hydraulic log splitter built for homeowners, rental fleets, farms, and demanding property work. A Honda GX160 engine powers an 11 GPM two-stage pump, while the beam switches between horizontal and vertical positions for easier handling of large rounds.

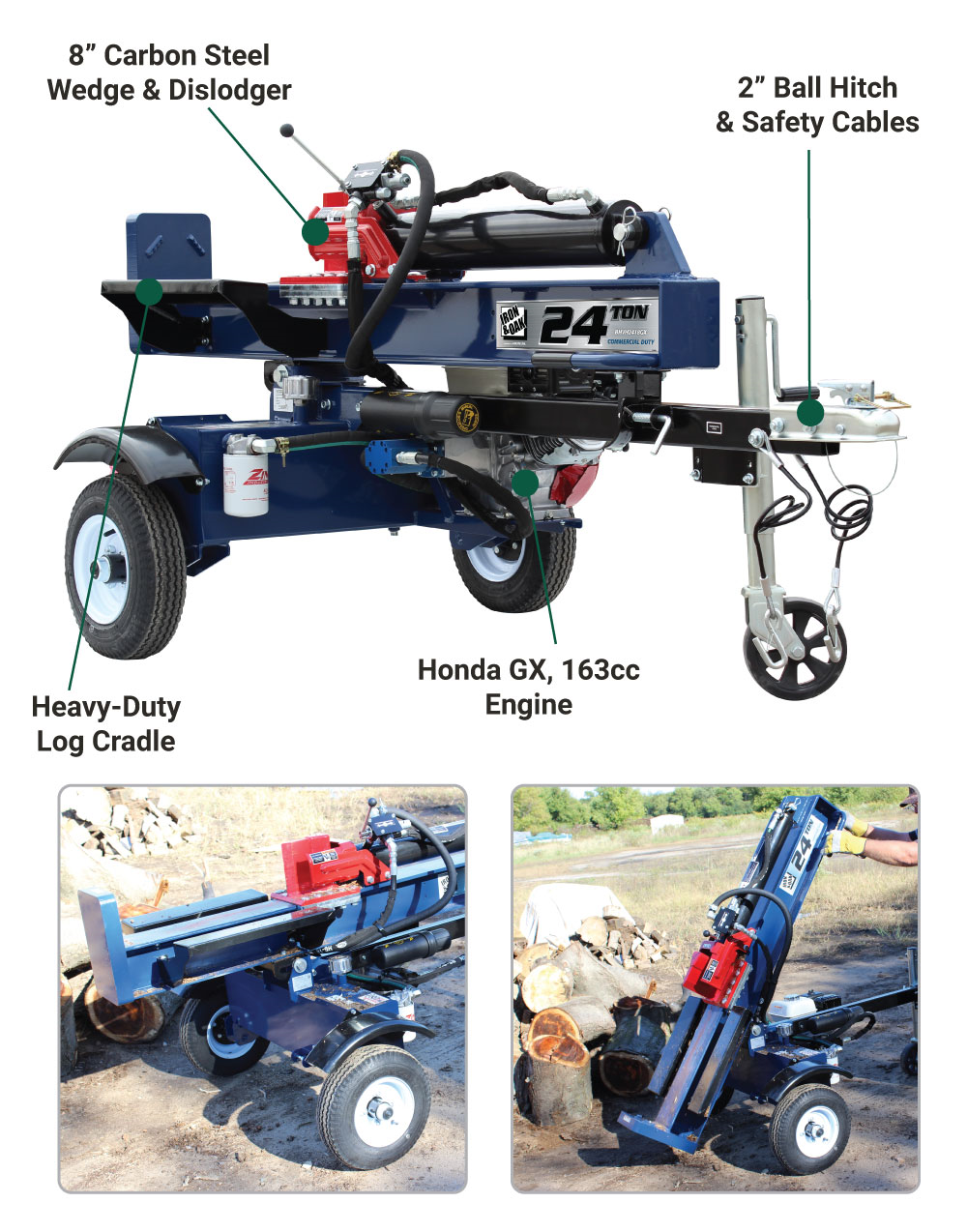

Key Features
- 24 tons of splitting force
- Honda GX160 163cc commercial engine
- Horizontal and vertical operation
- 13-second cycle time
- 11 GPM Hi-Lo two-stage hydraulic pump
- 25-inch maximum log length
- Heavy-duty wedge with five bolts per side
- Log cradle and log dislodger standard
- 4-stage hydraulic filtration system
- 2-inch hitch with highway-rated tires
Specifications
| Model | BHVH2418GX |
|---|---|
| Splitting Force | 24 tons |
| Engine | Honda GX160, 163cc |
| Cycle Time | 13 seconds |
| Max Log Length | 25 in. |
| Operation | Horizontal / Vertical |
| Cylinder | 4 in. x 24 in., 1.75-in. rod |
| Pump | 11 GPM Hi-Lo 2-stage |
| Hydraulic Capacity | 10.0 gal. system total |
| Hitch | 2 in. |
| Dry Weight | 675 lb. |
| Country of Origin | Made in USA with U.S. and imported components |
Shipping & Freight
Heavy equipment freight and delivery requirements vary by destination. Contact American Timber Equipment for current freight options and delivery details before shipment.
Warranty
Iron & Oak equipment is covered by the manufacturer's applicable limited warranty. Coverage and registration requirements are subject to Iron & Oak's current warranty terms.
Returns & Cancellations
Return and cancellation eligibility may vary by product condition, order status, freight arrangements, and manufacturer requirements. Contact us before returning equipment.
