2-Way vs 4-Way Log Splitter Wedge: Which Is Better?

2-way versus 4-way log splitter wedge guide

A 2-way wedge makes one split per pass and usually requires the least hydraulic force. A 4-way wedge can create four pieces in one pass, but it works best when the rounds are straight, reasonably consistent and the splitter has enough force to push the extra cutting surfaces through the wood.

Multi-way wedges are a productivity tool, not automatically an upgrade for every log. The fastest setup is the one that reduces re-handling without causing the splitter to stall or produce awkward pieces.

2-Way vs 4-Way Wedge: Quick Comparison

Factor 2-Way Wedge 4-Way Wedge
Pieces per pass Usually 2 Up to 4
Force required Lower Higher
Best wood Large, knotty, irregular Straight, consistent rounds
Control over piece size Higher Faster but less flexible

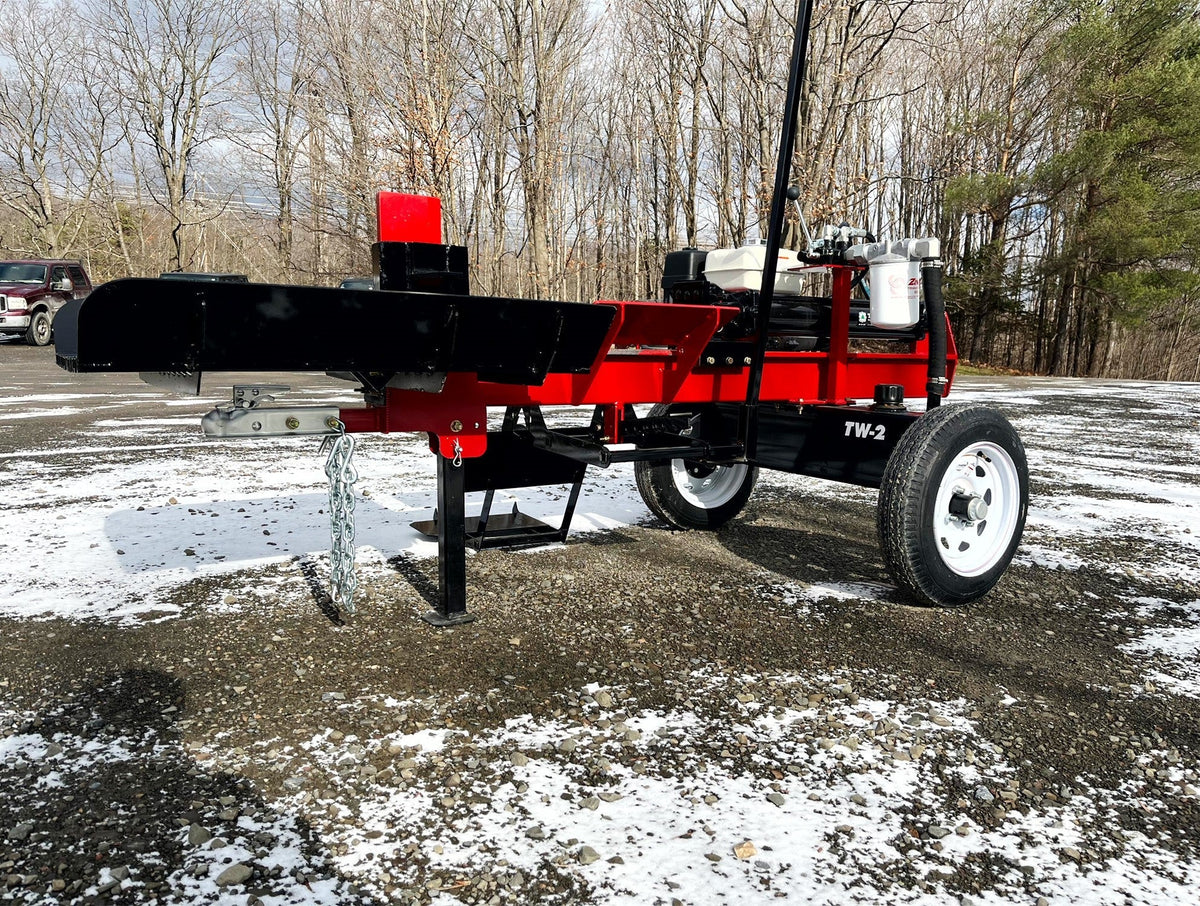

Timberwolf TW-2 commercial log splitter
A multi-way wedge can increase pieces per stroke, but the best wedge depends on wood size, grain and available splitting force.

Why a 2-Way Wedge Is Still the Baseline

A standard wedge concentrates splitting force into one main dividing line. That makes it useful for large rounds, crotches, twisted grain and difficult hardwood. The operator can rotate the half and make the next split exactly where needed.

The tradeoff is handling. A round that ultimately needs four or eight pieces must be repositioned several times. For personal firewood that may be acceptable. For production work, handling time becomes significant.

How a 4-Way Wedge Improves Output

A 4-way wedge adds a second cutting plane so one stroke can create four pieces. On straight rounds with predictable grain, this can cut the number of cycles and reduce how often the operator touches each piece.

The Timberwolf TW-2 is listed with a 4-way wedge, showing how multi-way splitting fits naturally into a production-oriented machine.

Why a 4-Way Wedge Needs More Force

Every additional cutting surface adds resistance. A 4-way wedge is trying to open multiple fractures simultaneously. If the wood is knotty or oversized, the machine may slow, stall or create uneven pieces.

This is one reason tonnage should be evaluated with wedge design. A 24-ton splitter with a 2-way wedge may handle a difficult round that becomes frustrating with a 4-way wedge.

Wood-Mizer FS350 bi-directional log splitter
Bi-directional splitters can reduce idle return movement and pair well with multi-way wedge strategies for higher-volume firewood work.

Bi-Directional Splitters and Multi-Way Wedges

Bi-directional machines such as the Wood-Mizer FS350 change the productivity equation because the machine can split on both directions of hydraulic travel. When paired with the right wedge and consistent material, the operator spends less time waiting for an empty return stroke.

That does not make a 4-way wedge mandatory. Large or irregular rounds may still need to start with a simpler split before being reduced further.

Adjustable Wedges

Some commercial splitters use wedges that can be raised, lowered or changed to suit different log diameters. This can improve consistency because the cross wedge can be centered on the round rather than fixed at one height.

Adjustability is valuable when the firewood business sells a consistent finished size. It is less important when the operator is simply reducing storm debris for personal use.

Piece Size Matters More Than Piece Count

Four pieces are only useful if they are the right size. A small round sent through a fixed 4-way wedge can create pieces that are too small. A very large round can create four oversized quarters that still need additional splitting.

Think about the final customer or stove opening. The goal is not the highest pieces-per-stroke number; it is the fewest total handling steps to reach usable firewood.

Wood Species and Grain

Straight-grained wood generally responds well to multi-way wedges. Elm, crotches, knots and twisted hardwood can resist a 4-way split because the fracture paths do not follow the wedge cleanly.

If difficult species are common, prioritize enough splitting force and the ability to return to a 2-way setup.

Which Wedge Should You Choose?

Choose 2-way when: rounds are large or irregular, wood is difficult, you want maximum control over finished size or your splitter is near its force limit.

Choose 4-way when: rounds are reasonably straight, production volume matters, the splitter has sufficient force and the resulting piece size fits your needs.

Commercial Firewood Strategy

High-output operations often use more than one wedge configuration. Large rounds may be pre-split, then processed through a multi-way wedge. Some crews sort material by diameter so the wedge stays optimized for each batch.

This workflow mindset is more important than the number stamped on the wedge.

Compare finished firewood, not just pieces per stroke

Run the decision backward from the finished split. Identify the stove opening or customer size you must serve, then consider the rounds you actually receive. Four oversized quarters still need re-splitting; four undersized pieces may miss the intended product specification. A fixed cross wedge can also give uneven results when round diameters vary.

Typical material Practical starting choice Reason to change
Knotty crotches and irregular hardwood Approved 2-way configuration Use additional passes to control fracture and finished size.
Consistent, straight rounds Approved 4-way configuration Retain it only if usable output rises without excessive stalls or rehandling.
Mixed diameters and several customer sizes Interchangeable or adjustable system approved for the machine Batch material or adjust the approved setup between groups.

For an illustrative comparison, time two equivalent batches with the same crew and include loading, returning pieces to the table, clearing finished wood and changing the wedge. Compare usable output per labor-hour, not only the cylinder timer. This is a test method, not a claim about any model’s production rate.

Compatibility is a separate gate. A wedge that physically slips over another wedge is not automatically approved for the beam, cylinder or mount. Obtain the exact accessory part number and installation instructions for the machine. Do not improvise an adapter, increase hydraulic pressure or remove safety equipment to make a multi-way wedge work.

If you need more than four splits per pass, compare the processor wedge and split-pattern guide rather than assuming a handheld accessory matches a processor system. Use the log-length and working-clearance guide when comparing the space needed to reposition rounds.

Frequently Asked Questions

Does a 4-way wedge make a log splitter four times faster?

No. It can reduce cycles on suitable rounds, but loading, cycle time, wood shape and re-splitting still control total production.

Can I add a 4-way wedge to any splitter?

Only if the manufacturer offers or approves one for that model. The beam, wedge mount and available force must be compatible.

Is a 4-way wedge good for oak?

It can work very well on straight oak rounds when the splitter has enough force. Knots and crotches may still require a simpler first split.

Related Guides

How ATE evaluates technical information

The American Timber Equipment Editorial Team prioritizes current manufacturer specifications, operator and service documentation, warranty information, and other primary product materials when evaluating technical claims. Equipment specifications and configurations can change, so confirm critical compatibility, safety, and operating requirements in the manufacturer’s current documentation before purchase or use. Read our Editorial Standards & Research Methodology.
