Log splitter cycle time is the time required for the hydraulic splitting mechanism to complete a full operating cycle. A shorter cycle can increase productivity, but it is only one part of real firewood output.
For commercial work, the fastest splitter on paper may not be the fastest operation if logs are difficult to load, the wedge requires repeated passes or finished wood piles up around the operator.
In This Guide
Why Cycle Time Matters
Every second spent waiting on the hydraulic system repeats hundreds of times during a long production day. As volume rises, small differences become meaningful.
| Example | Published Cycle / Workflow | Published Output |
|---|---|---|
| Timberwolf TW-2 | 9-second cycle | Up to 1 cord/hour |
| Wood-Mizer FS350 | Bi-directional splitting | Up to 2 cords/hour |
| Wood-Mizer FS500 | 4.5-second cycle, bi-directional | Up to 3 cords/hour |
Cycle Time Is Not the Same as Cords Per Hour
Cycle time measures hydraulic movement. Cords per hour measures the output of the whole operation.
Production is affected by:
- Log diameter and species
- How many pieces the wedge creates per pass
- Loading speed
- Hydraulic log lifts
- Catch tables and conveyors
- Operator experience
- Re-splitting requirements
Example: Timberwolf TW-2

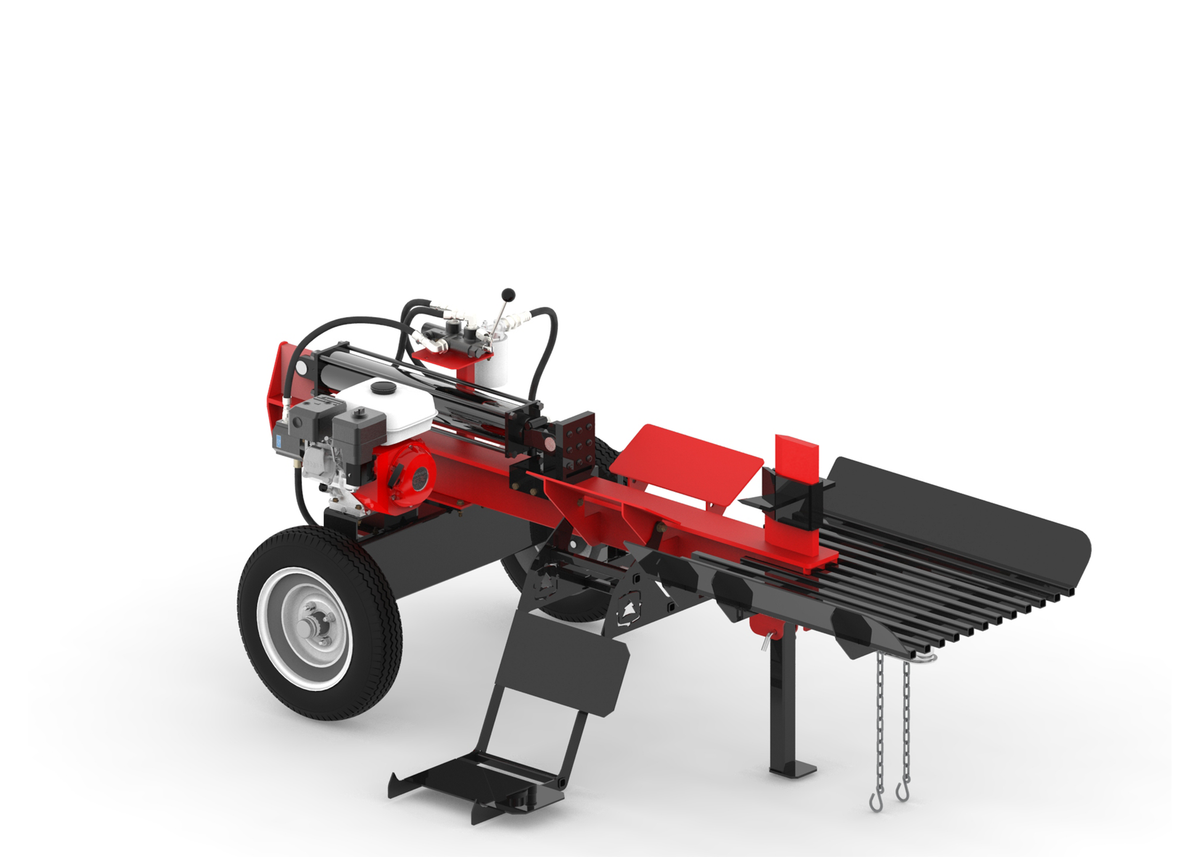

Timberwolf publishes a 9-second cycle time and output up to 1 cord per hour for the TW-2. The machine also includes a hydraulic log lift and table grate, which help the operator keep material moving.
Example: Wood-Mizer FS500
The FS500 combines a published 4.5-second cycle with bi-directional splitting and up to 3 cords per hour production.
That higher output is not explained by cycle time alone—the machine also uses a production-oriented deck, log lift and multi-way wedge options.
How Much Should Cycle Time Matter When Buying?
For occasional personal firewood, an extra few seconds per cycle may not materially change the ownership experience. For a firewood business, repeated across hundreds of splits, the difference can become significant.
What Else Should Commercial Buyers Measure?
- Average output per hour with your normal material
- Fuel use per production day
- Number of operators needed
- Re-split percentage
- Downtime for maintenance or clearing material
- Handling time before and after each split
Frequently Asked Questions
What is a good cycle time for a log splitter?
There is no single target for every user. Faster cycles matter more for high-volume production than for occasional firewood.
Does a faster cycle mean more splitting force?
No. Cycle speed and splitting force are separate characteristics determined by the hydraulic system, cylinder and power source.
What matters more: tonnage or cycle time?
Tonnage determines whether the machine can handle difficult material; cycle time affects how quickly the machine can repeat the process. High-volume buyers need to evaluate both.
