A bi-directional log splitter can split on both directions of the hydraulic stroke instead of making a productive split in one direction and then returning empty. For high-volume firewood work, that can reduce idle movement and increase throughput.
The tradeoff is that production depends on the entire workflow—wedge design, cycle speed, log loading and operator handling—not just whether the ram works in both directions.
In This Guide
Bi-Directional vs Conventional Splitting
| Feature | Bi-Directional | Conventional Return-Cycle |
|---|---|---|
| Productive stroke | Both directions | Usually one direction |
| Idle return | Reduced or eliminated | Common |
| Best use | Higher-volume production | General-purpose firewood work |
| Workflow | Material handled on both sides of push block | Material typically returns to same working side |
How Bi-Directional Splitting Works
Wood-Mizer's FS350 and FS500 use a push block designed to split as it travels in either direction. Instead of waiting for a non-productive return stroke, the operator can position the next piece for the opposite direction.
Wood-Mizer states that the FS350 can produce up to 2 cords per hour, while the larger FS500 is published at up to 3 cords per hour under suitable conditions.
Why It Can Increase Throughput
Traditional hydraulic splitters commonly spend part of every cycle returning the ram to its starting position. Bi-directional designs use more of that hydraulic movement for actual splitting.
That advantage becomes more meaningful as daily volume rises.

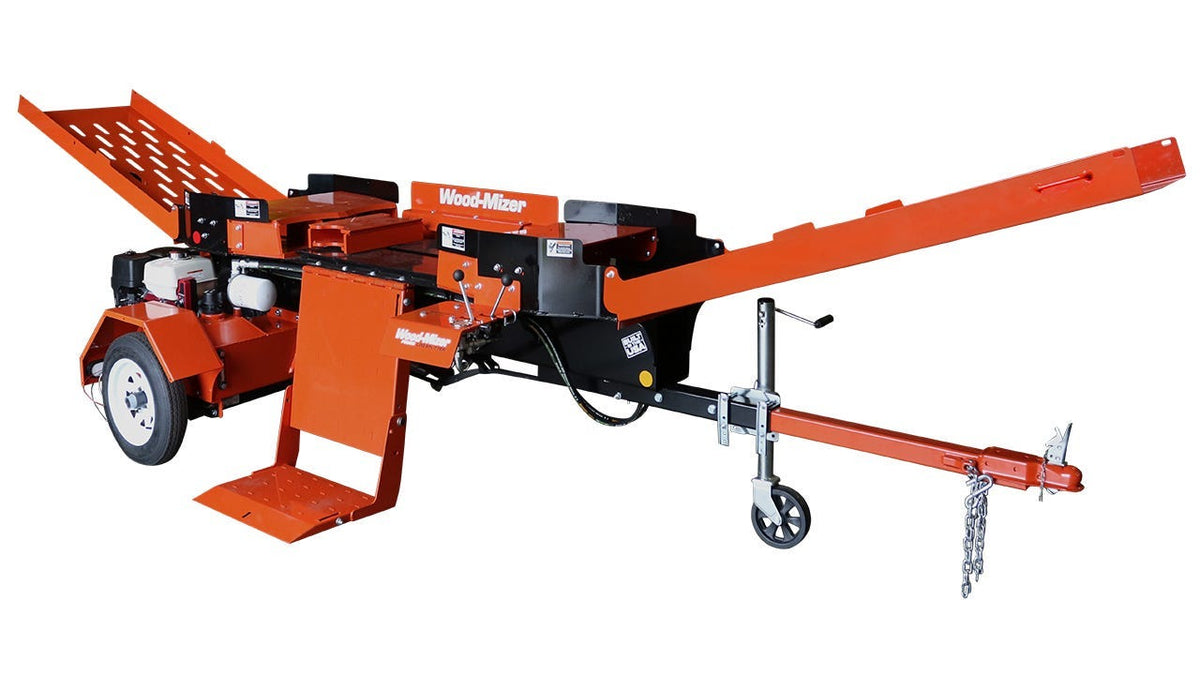

The FS350 Approach
The Wood-Mizer FS350 combines 29 tons of splitting force, a 24-inch maximum log length and bi-directional operation. Wood-Mizer positions it for farms and small firewood businesses.
The FS500 Approach
The Wood-Mizer FS500 increases splitting force to 42 tons and publishes a 4.5-second cycle time with production up to 3 cords per hour.
Does Bi-Directional Automatically Mean Faster?
No. Real production is also limited by:
- How quickly logs are loaded
- Wedge configuration
- Round diameter
- Species and grain
- Operator workflow
- How finished splits are moved away
A fast cylinder is wasted if the operator spends most of the time lifting, repositioning or clearing wood.
Who Benefits Most?
- Commercial firewood producers
- Farm operations splitting regularly
- Users measuring output in cords per hour
- Operations planning to add conveyors or other material handling
Frequently Asked Questions
What is a bi-directional log splitter?
It is a splitter designed to perform useful splitting work as the hydraulic mechanism travels in both directions.
Is bi-directional better than a fast conventional splitter?
Not automatically. Cycle time, wedge design and material handling all affect real throughput.
Are bi-directional splitters only for businesses?
No, but their productivity benefits become more valuable as splitting volume increases.
