Log Splitter Hydraulic Oil Overheating: Causes & Fixes

Hydraulic systems create heat whenever fluid moves through pumps, valves, hoses, cylinders, and restrictions. Some temperature rise during hard splitting is normal. Persistent excessive heat, a sudden temperature increase, slow cycling, weak force, unusual pump noise, foaming oil, or leaking seals are signs that the system needs attention.

Do not diagnose hydraulic temperature by touch alone. Hot fluid can burn skin, and pressurized leaks can cause injection injuries. Use the manufacturer's temperature limits, service procedure, and proper measurement method. The goal is to separate normal operating heat from a system that is wasting energy or operating outside its intended range.

1. Verify whether the temperature is actually excessive

Hydraulic oil is often warmer than people expect during continuous operation. Before changing parts, determine the normal operating range published by the manufacturer and measure temperature using an appropriate method. A machine that feels hot but remains within specification may be operating normally, especially during high ambient temperatures or sustained splitting.

A sudden change from the machine's established baseline is more useful than a subjective touch test. Record ambient temperature, operating time, material, cycle rate, and measured hydraulic temperature. If the system used to run at one temperature and now consistently runs much hotter under the same workload, something in the hydraulic circuit or duty cycle may have changed.

2. Check fluid level and fluid specification

Low reservoir level can reduce cooling capacity and introduce aeration. The wrong viscosity or fluid type can increase losses or create poor lubrication. Overfilling can also cause foaming or leakage depending on system design. Hydraulic fluid is part of the machine's cooling and lubrication system, so both quantity and specification matter.

Check level at the temperature and cylinder position specified by the manufacturer. Use the exact fluid specification rather than choosing oil based on appearance or what happens to be available in the shop. Mixing incompatible fluids or using the wrong viscosity can make diagnosis more difficult and may affect seals, pumps, and valves.

3. Inspect filters and restrictions

A clogged filter, damaged hose, partially closed valve, kinked line, contaminated quick coupler, or other restriction converts hydraulic energy into heat. Slow cycle time can appear at the same time because flow is being limited. Restrictions often become more noticeable after the machine has warmed and the operator increases production pace.

Replace filters at the recommended interval and inspect hoses and fittings for external damage. Internal hose failure may not be visible from the outside, so a persistent restriction can require pressure and flow testing. Quick couplers deserve special attention on attachments because a partially connected or damaged coupler can create a large pressure drop.

4. Relief-valve operation generates heat quickly

When the cylinder reaches the end of stroke or the wedge encounters a load it cannot move, the relief valve may open to protect the system. Holding the control against relief converts a large amount of power into heat instead of useful work. Repeating that behavior on difficult rounds can raise oil temperature quickly.

Avoid keeping the valve engaged at the end of travel longer than necessary. If the machine seems to enter relief too easily, pressure should be checked by qualified service using manufacturer specifications rather than by turning adjustment screws at random. Incorrect relief pressure can damage components or reduce splitting performance.

5. High duty cycle can outrun cooling capacity

Commercial firewood production can keep a hydraulic splitter cycling continuously. Ambient temperature, direct sun, reservoir size, airflow, engine load, and cycle frequency all affect heat rejection. A machine that stays comfortable during occasional homeowner use may operate much hotter during continuous commercial production.

If overheating appears only during sustained high-output work, compare the actual duty cycle with manufacturer expectations. Clean cooling surfaces and maintain airflow around the reservoir or cooler where fitted. Also look at workflow: constantly forcing the machine into maximum pressure is different from a smooth production rhythm where most rounds split without prolonged relief-valve operation.

6. Pump wear or internal leakage can create heat

A worn pump, cylinder bypass, valve leakage, or other internal efficiency loss can turn power into heat while reducing useful force or speed. These problems are harder to diagnose without pressure and flow testing because nothing may appear obviously broken from the outside.

Clues can include slower cycle time, reduced splitting force, hotter oil, unusual noise, or performance that deteriorates as the machine warms. Comparing cold and hot performance can help a technician narrow the diagnosis. A machine that starts strong and becomes weak as temperature rises may be losing efficiency internally.

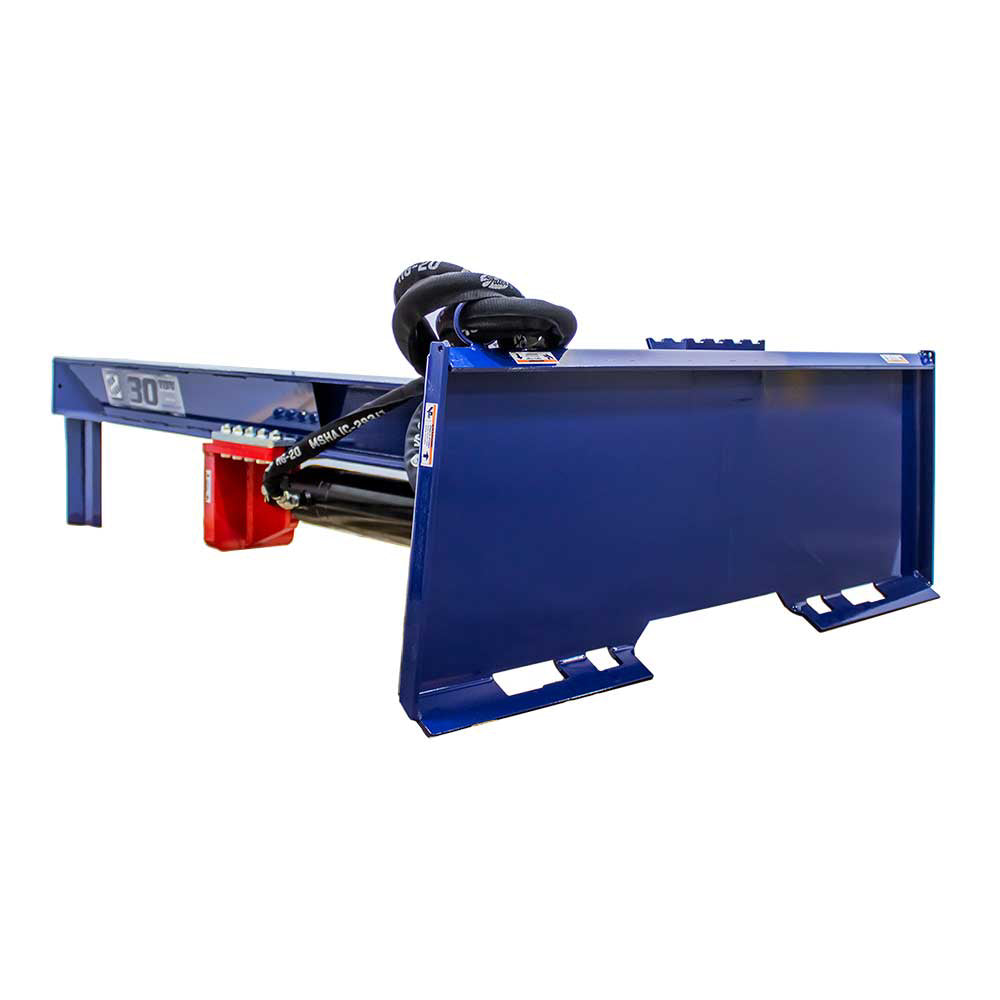

7. Skid-steer attachments depend on the carrier

A skid-steer log splitter relies on the carrier's hydraulic system. Excessive auxiliary flow, pressure outside the attachment range, improper couplers, restrictions, or carrier cooling issues can affect attachment temperature and performance. The attachment may be perfectly healthy while the carrier is operating outside the combination it was designed to support.

Match both flow and pressure requirements. More hydraulic power is not automatically better; exceeding the attachment rating can damage components. Also verify that the carrier itself is clean, serviced, and operating within its own hydraulic temperature limits. Dirty coolers or a carrier already running hot will affect the attachment.

8. Air in the hydraulic system can make symptoms worse

Aerated oil can look foamy or milky and may cause noise, erratic cylinder movement, heat, and reduced efficiency. Low fluid level, suction-side leaks, loose fittings, or incorrect service procedures can introduce air into the system. Cavitation can also create noise and damage when the pump cannot receive oil properly.

Do not assume bubbles will always work themselves out. Follow the manufacturer's bleeding or service procedure, and inspect the suction side carefully if aeration returns after the system has been serviced. A recurring aeration problem usually has an underlying cause that should be corrected.

9. Separate a heat problem from a productivity problem

Sometimes the first complaint is “the hydraulics are too hot,” but the underlying issue is actually slow cycle time, low force, or repeated stalling on difficult wood. Treat those symptoms as a group. A restriction, worn pump, internal bypass, incorrect flow setting, or poor fluid condition can affect both heat and productivity.

Measure cycle time when the system is cold and again after sustained work. Note whether force changes, whether the pump tone changes, and whether the machine reaches relief more often as temperature rises. That information is far more useful to a service technician than simply reporting that the oil feels hot.

10. Build a baseline before changing parts

Parts replacement should follow diagnosis rather than guesswork. Record the fluid type, filter age, ambient temperature, operating time, measured oil temperature, cycle time, material being split, and any unusual noise or leaks. On a skid-steer attachment, record auxiliary flow and pressure settings as well.

A baseline helps you see whether a maintenance change actually solved the problem. It also prevents replacing a pump when the real issue was a clogged filter, incorrect coupler, low reservoir level, or an operating pattern that kept the system on relief.

Practical Hydraulic Overheating Checklist

• Confirm manufacturer temperature limits
• Measure temperature rather than judging by touch
• Check reservoir level correctly
• Verify fluid type and viscosity
• Inspect filters, hoses and couplers
• Avoid holding the valve on relief
• Clean cooling surfaces
• Compare duty cycle with machine design
• For skid-steer units, verify carrier flow and pressure
• Look for aeration or cavitation symptoms
• Compare hot and cold cycle time
• Seek pressure/flow testing if performance has changed

Frequently Asked Questions

How hot is too hot for log splitter hydraulic oil?

Use the limit published by the manufacturer. Different fluids, seals, pumps, and system designs have different acceptable ranges, so one universal temperature is not reliable.

Can a clogged hydraulic filter cause overheating?

Yes. A restriction can create pressure loss, reduce flow, and convert energy into heat. A filter that is overdue for service can also contribute to slow cycle time.

Why does my splitter get hotter after an hour?

Continuous duty, ambient temperature, internal leakage, restricted flow, or inadequate cooling can become more noticeable as operating time increases.

Can I install thicker hydraulic oil to reduce heat?

Do not change viscosity without manufacturer approval. Oil that is too thick can increase losses and create other problems, especially when cold.

Why does a skid-steer splitter overheat on one machine but not another?

Carrier flow, pressure, couplers, auxiliary circuit design, and cooling capacity can differ. Verify the attachment range against the exact carrier.
